The main reinforcement product lines are:
Download pdf. Scan with your phone.
The main reinforcement product lines are:

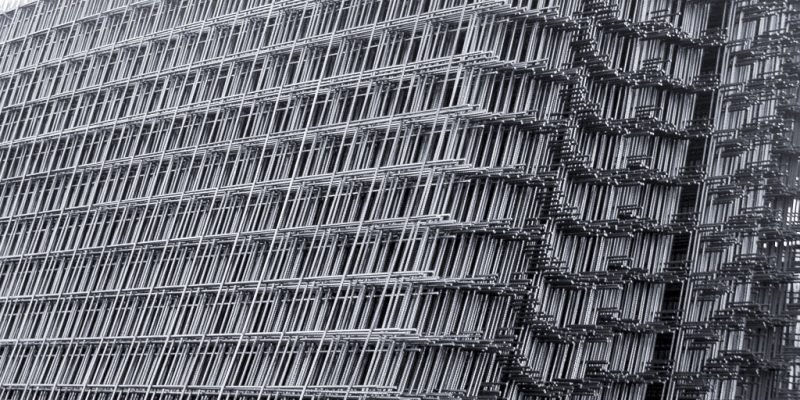

ELECTRO WELDED MESHES
ELECTRO WELDED MESHES
It is defined as a combination of two orthogonal layers formed by cold deformed steel wires of quality AT56, welded in each of the intersection points, by means of welding by electric resistance and manufactured in a process of mass production.

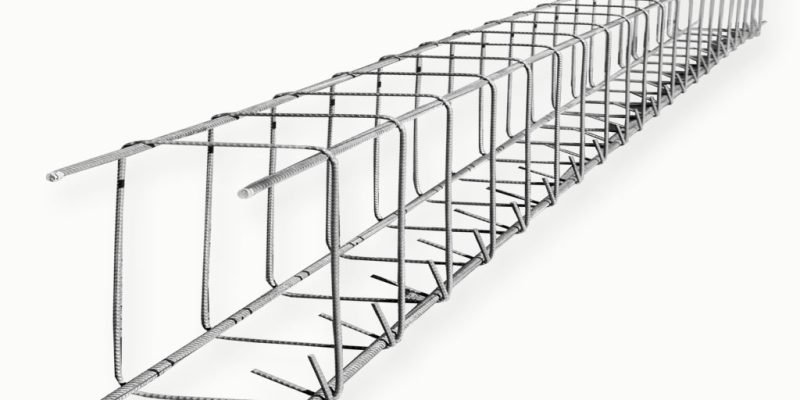

ELECTRO WELDED PILLARS
ELECTRO WELDED PILLARS

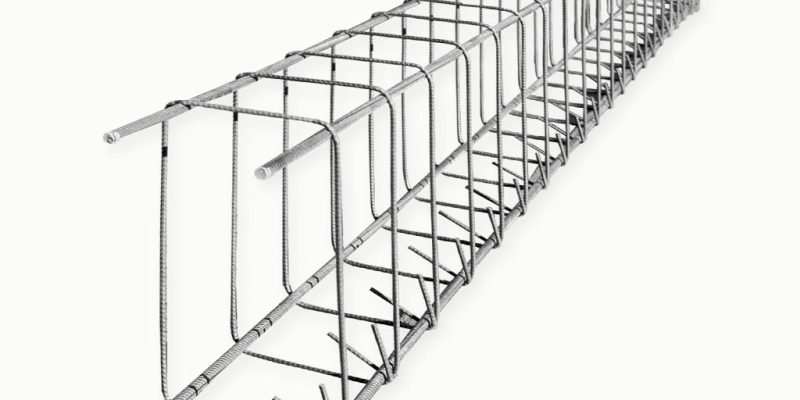

ELECTRO WELDED CHAINS
ELECTRO WELDED CHAINS
ASTEEL electro welded chains are manufactured with high-resistance steels AT56-50H. ASTEEL Electro welded pillars are manufactured with high-resistance steels AT56-50H, these are made up by four longitudinal bars of 8,0mm and 9,2mm diameter in different lengths from 2,50m to 3,40m and confined by stirrup of 4,2mm diameter in different sections, which meet each other every other 15cm.
APPLICATIONS
ASTEEL electrowelded chains are used in housing, extensions, masonry closures and also as reinforced concrete reinforcement.

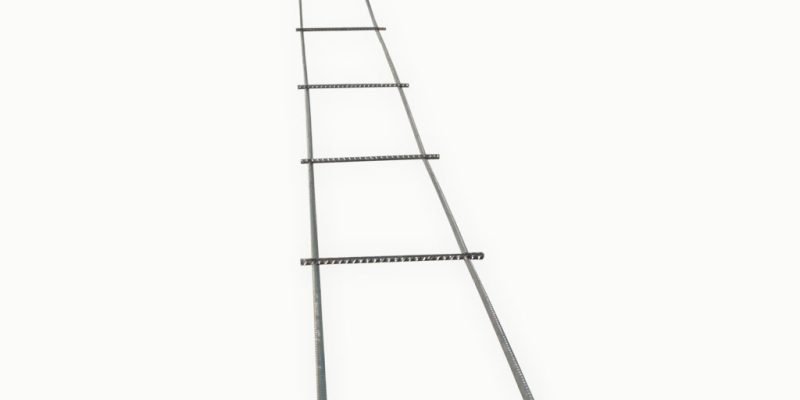

ELECTRO WELDED SHORT STAIRS
ELECTRO WELDED SHORT STAIRS
ASTEEL electro welded short stairs are horizontal reinforcement steel armors used in construction walls, whose objective is to absorb cutting forces and tensile strains. These are manufactured in AT56-50H quality steels and formed by two longitudinal 4,2mm diameter and 5m long by 4,2mm fastens positioned at a 30cm distance.

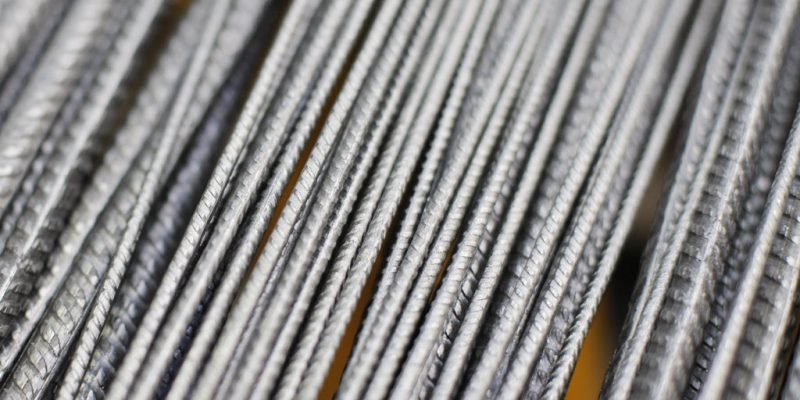

REINFORCEMENT BAR AT-56
REINFORCEMENT BAR AT-56
AT56-50H complementary reinforcement bars for building of structures: Floors, Beams, Chains, Elevations, Wall encounters and connections, and they are commercialized in 6mts length.

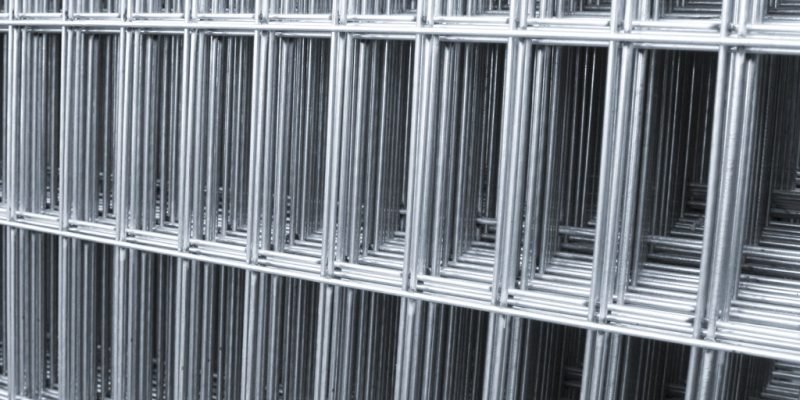

GALVANIZED MESH FOR FENCING
GALVANIZED MESH FOR FENCING
Galvanized Wire Welded Meshes are manufactured with state-of-the-art technology which provides homogeneous and high resistance joints. The meshes are covered by a zinc coating which protects the wire from the effects of the weather and the environment.

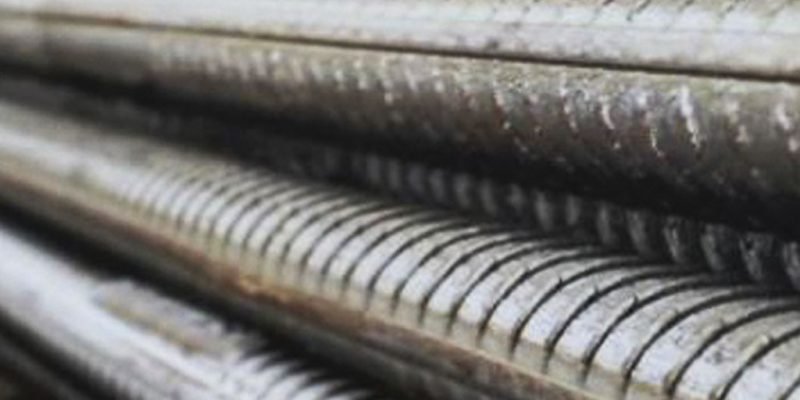

CONCRETE REINFORCING BARS A630 A440
CONCRETE REINFORCING BARS a630 AND a440
We sell concrete reinforcing steels. Quality is a priority throughout our process and as a support to our customers we have the Certification of an external body and recognized trajectory as DICTUC.

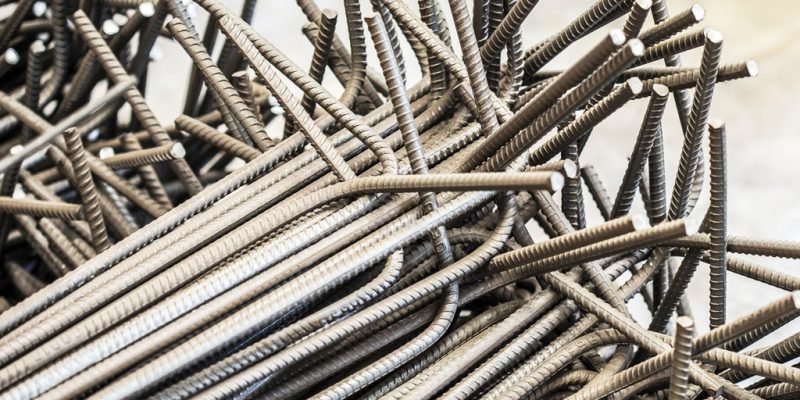

CUTTING AND BENDING SERVICE
CUTTING AND BENDING SERVICE
The cutting and bending service is performed with high technology equipment and standards that ensure and guarantee a homogeneous and quality product, generating the following advantages on site:
- Elimination of metallic losses for the construction site.
- Cost reduction.
- Reduction of labor costs.
- Assurance of product traceability and use according to current regulations.
ANNEALED WIRE
ANNEALED WIRE
The production process of annealed wire is divided into the stages of cold drawing of the wire (drawing) and annealing of the same based on heat produced with gas inside bell furnaces, a process that rearranges the steel molecules of the wire, and gives the product malleability and resistance for its different uses.
